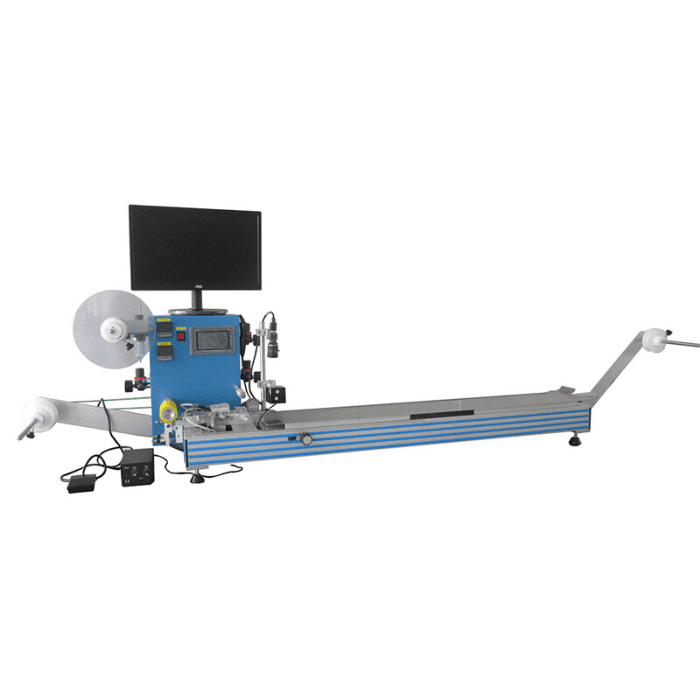

Manual Taping Machine TRM-100
- Adjustable track assembly for tape widths up to 56mm.
- IndependentPID temperature control accurately and steadily.
- PSA and thermal sealing.
- User-friendly software assures ease of set up and operation.
- Dimensions: L 80″ (2030mm) x W 20.8″ (528mm) x H 25.3″ (642mm)
- Power required: 220 VAC, 50Hz, Compressed air 0.5Mpa (72.5 PSI ，5.1kg/cm²)
Additional information
| Table Width | Standard, Lengthen |
|---|---|
| Optional | CCD System, Working Table |
Detail About Manual Taping Machine TRM-100
1.Overview
TRM-100 is a Semi-automatic taping machine with manual placement operation and multi-size adjustment.
It is suitable for small and medium batches of electronic components, connectors, hardware, plastic and rubber, and other products suitable for carrier tape packaging.
The basic principle is that the carrier tape and the cover tape are sealed together by means of hot pressing, and it is also suitable for the non-heat sealing of the self-adhesive cover tape and the carrier tape.
2. Operator
The Model TRM-100 must be hand-fed by an operator from either tubes or trays. Carrier tape motion can be continuous or intermittent, controlled by the foot pedal.
3. Features

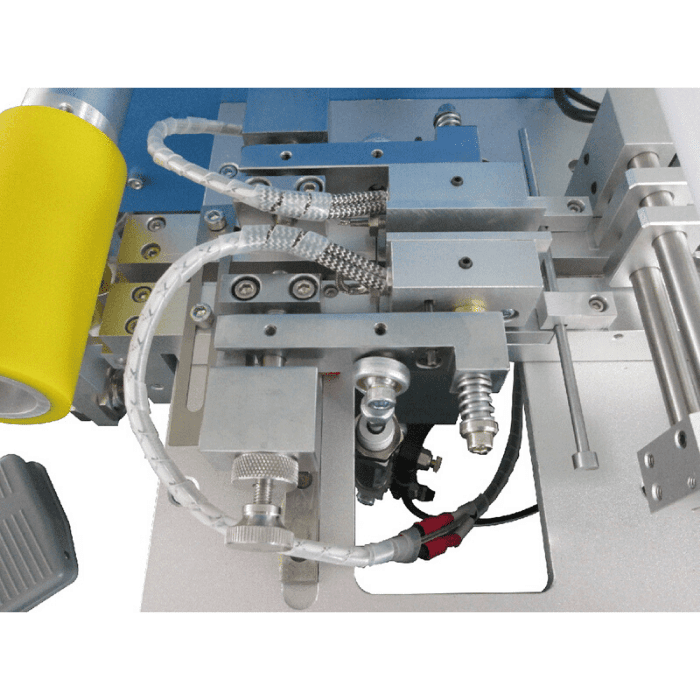

- Cold sealing (PSA) and thermal sealing.
- Accommodates 12-56mm wide carrier tape.
- Independently controlled seal temperature for each side of the cover tape.
- User-friendly software assures ease of set up and operation.
- The tension and position of the cover belt can be adjusted.
- Stepless adjustment of belt pulling speed.
- Precision seal head temperature and pressure control
- All taping reels are EIA-481 standard.
- Foot pedal advance
- Stand-alone operation, no computer required (PC optional)
- Solid construction, provides years of service
- 1 Year warranty
- Multiple options and upgrades

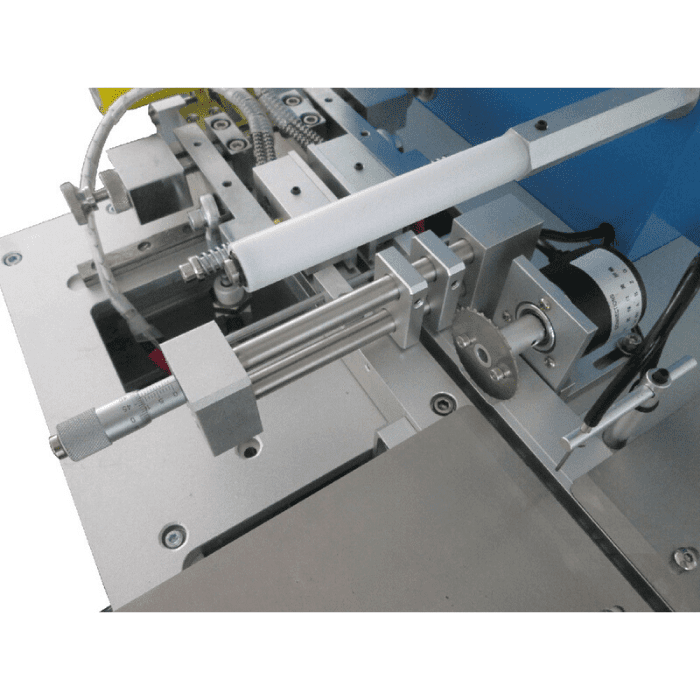

4. Additional Features
- Controlled by PLC, Safty, stable and reliable.
- The position of the sealing knife can be fine-tuned to <0.1mm.
- Precision seal head temperature and pressure control
- Easy loading, ESD-safe work surface
- Manual and pedal switches can control the machine to run or stop working.
- Enumeration adopts an industrial encoder, which is simple and reliable and ensures accurate counting.
- Manual and pedal switches can control the start and stop of the machine to facilitate the operation of the equipment.
- The machine is controlled by PLC, which is stable and reliable.
5. Specifications
| Items | Description |
|---|---|
| Tape Width | 8-56mm |
| Feeding and Receiving | Rubber and paper trays in accordance with EIA-481 |
| Sealing form | Hot and cold sealing |
| Temperature Control | PID |
| Control system | PLC+Touch Screen+Stepper Motor |
| Capacity | 1000-5000 UPH |
| Power supply | AC220V/50Hz |
| Maximum current | 4A |
| Air Pressure | 0.40～0.6MPa |
| Dimension | 2030(L)*528(W)*642(H)mm |
| Weight | 50KG |
6. User Manual
https://www.tapereelmachine.com/downloads/user-manual/TRM-100_User_Manual_V1.0.pdf
